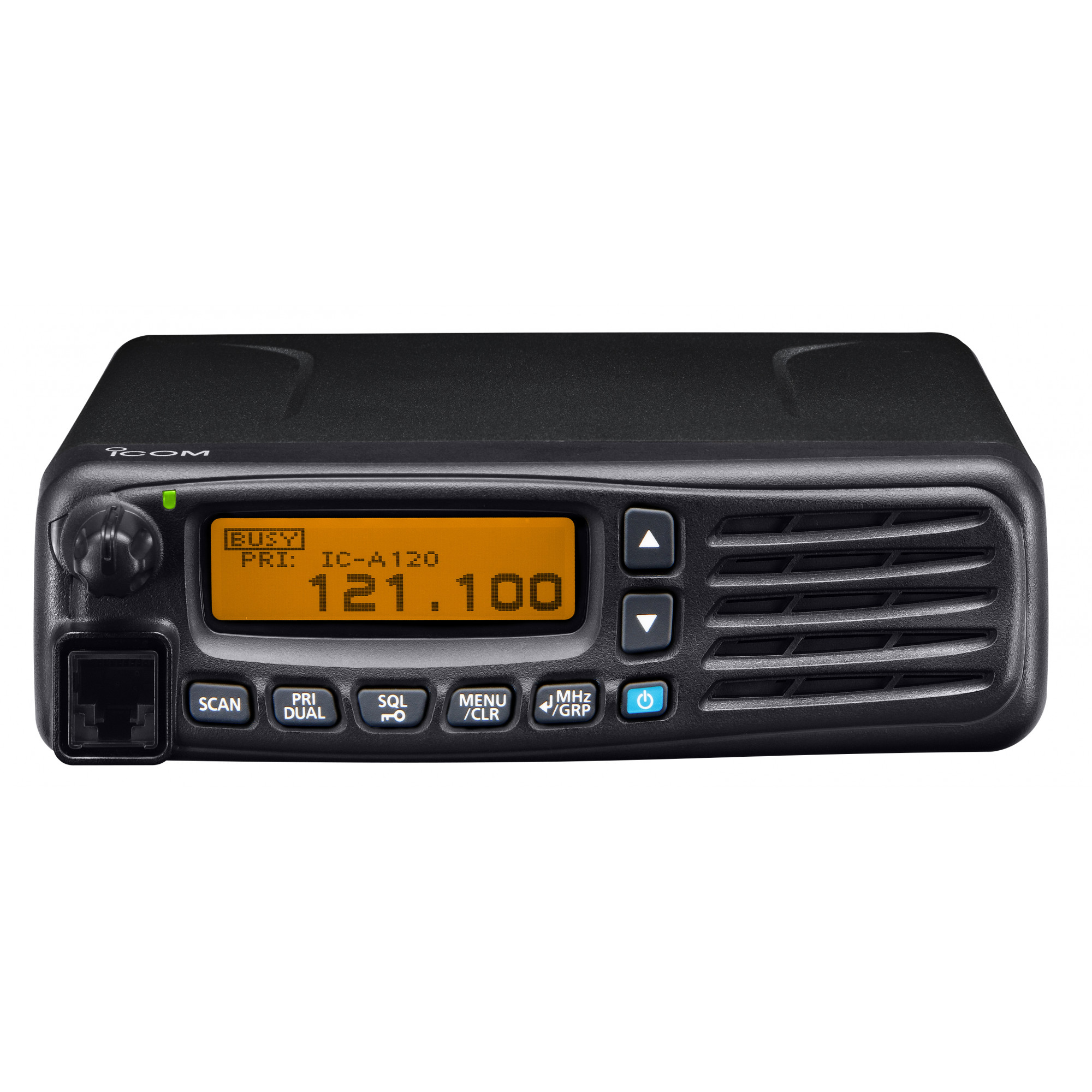

Icom IC-A120E VHF AVIATION MOBILE TRANSMITTER RECEIVER

Description

Description of the Icom IC-A120E aviation mobile

36W PEP VHF aviation mobile, 200 channels, 8.33 kHz and 25 kHz channel spacing, active matrix LCD display, active noise-reducing VFO mode, wireless accessory compatible with optional UT-133 Bluetooth board, MIL-810G ruggedness, IP54 waterproofing. For ground-to-air communication in air-port areas.
Equipment designed for use in airport areas.

IC-A120E highlights :

• 8.33/25 kHz channel spacing
• High-visibility display with active matrix LCD
• New ANC and ANL (Active Noise Reduction) technologies to attenuate ambient noise
• Optional Bluetooth interface for use with compatible wireless accessories (VS-3 headset, Peltor headphones, etc.)
• Front panel with speaker for enhanced audio quality
• 200 customizable memory channels (saved directly to EEPROM to prevent memory erasure)
• Side tone function for use with headphones (with OPC-871A)
• Intelligent (ON-hook) and advanced scanning (VFO or priority)
• HM-217 microphone (optional) with up/down buttons.
• Compatible with CI-V protocol for external control
• Compatible with VE-PG3 ROIP gateway
• Can be used even in harsh conditions (ruggedness to MIL-STD810 standard and waterproofing to IP54 standard)
• Compact size

High-visibility display

The IC-A120E features an active matrix LCD display for easy readability.

Adaptable to all vehicles!

The IC-A120E can be installed on any vehicle equipped with a 12 or 24 V power supply.

Front panel with loudspeaker

To ensure perfect audio quality for communications, the IC-A120E incorporates a loudspeaker on the front panel. Connecting an optional external loudspeaker provides 10 W of power.

Customizable memory channels

For quick and easy use of the IC-A120E, you can assign names (mnemonics) to each channel (up to 12 characters per channel). They are saved in EEPROM to prevent memory deletion.

All-weather operation

The IC-A120E’s rugged design means it can be used in harsh indoor and outdoor environments (open track vehicles, convertibles, etc.). It is dust- and waterproof (IP54), and complies with military standard MIL-STD 810.

Active Noise Canceller (ANC)

The new integrated active noise reducer attenuates ambient noise in reception and transmission. This function is particularly useful in noisy airport environments. The Automatic Noise Limiter (ANL)* reduces « loud » noises, such as engine starting.
*ANL and ANC functions cannot be used simultaneously.

Compatible with Bluetooth accessories

With the optional UT-133 board, the IC-A120E can be used with compatible Bluetooth wireless accessories such as the VS-3 or PELTOR HS-PEMT15H7A and HS-PEMT53H7A headsets.

Optional HM-217 microphone

The HM-217 microphone is IP54 waterproof and offers optimum listening performance. It features two programmable keys (P1 / P2) for frequently used functions. Channel change can also be performed from the microphone.

Other features :

IC-A120E highlights :

• 200 memory channels (12 characters per channel)
• 12 and 24 V compatible
• 36W RF power (P.E.P.)
• Dual standby and priority channel function
• User code on switch-on
• PCH programming
• CI-V command for external control
• Compatible with RoIP VE-PG3 gateway for connection to other radio systems
• Complies with European standards for in-vehicle installation
